- 产品描述
该配件是24小时多病人内管系统管路的配件之一。其管路系统用于欧利奇或类似的多通道高压注射器设备上。此配件安装在压力传感器底座柱塞上，用于防止药液流经压力传感器时因压力变化产生漏气和漏液现象。
- 技术参数
产品通用名称： | 防水防漏气密硅胶圈
|
产品型号： |
RM115003 |
品牌名称： | 迈乐威 Milerver |
原产地： | 中国 |
关键词： | 一次性使用 医用 24小时 多病人 内管 多通道管路系统 防水防漏气密硅胶圈 高压注射器 欧利奇 |
归属类别： | 压力传感器及配件 |
用途： | 高压造影注射器系统管路 |
材质： | 硅胶 |
重量： | 0.381 g |
尺寸： | 约 12*12
mm（L*W） |
灭菌类型： | 非灭菌 / 环氧乙烷灭菌 |
保质期： | 3年 |
质量体系认证： | ISO
13485，GMP，ISO 9001，ISO 14001，ISO 45001 |
质量认证： | CE & ISO |
器械分类： | II类 |
产品标准： | ISO
10993，GB/T 16886 |
材料标准： |
YYT
0031 |
材料相容性： | 产品满足《GB/T 16886.10-2017》医疗器械生物学评价标准要求 |
生物相容性： | EN
ISO 10993 & GB/T 16886 |
生产制造： | ISO 13485认证 & CE认证 & 十万级洁净车间 |
最小起订量： | 500个 |
样品： | 少于5个免费，但不包含运费 |
包装形式： | 塑料密封袋与纸箱 |
OEM & ODM： | 可以 |
- 应用场景 1
第一代欧利奇内管管路系统BOM清单
序号 | 层级 | 产品型号 | 产品通用名称 | 用量 |
01 | 1 | RM109002 | 1个 | |
02 | 1 | RM109001 | 1个 | |
03 | 1 | RM108003 | 1个 | |
04 | 1 | \ | PVC管1 | 1根 |
05 | 1 |
SF110001
| 1套 | |
\ | 2 |
RM111001
| 药液过滤器上盖 | 1个 |
\ | 2 |
RM111002
| 药液过滤器下盖 | 1个 |
\ | 2 |
RM111003
| 药液过滤膜 | 1片 |
06 | 1 | \ | PVC管2 | 1根 |
07 | 1 |
SF114001
| 压力传感器 | 1套 |
\ | 2 |
RM115001
| 1个 | |
\ | 2 |
RM115002
| 2个 | |
\ | 2 |
RM115003
| 防水防漏气密硅胶圈 | 2个 |
08 | 1 | RM113006 | 3个 | |
09 | 1 |
SF112001
| CT用穿刺器 | 3套 |
\ | 2 | RM113101 | 3个 | |
\ | 2 | RM113001 | 3个 | |
\ | 2 | RM113002 | 3个 | |
\ | 2 | RM113003 | 3个 | |
\ | 2 | RM113004 | 3个 | |
\ | 2 | RM113005 | 穿刺器防水透气膜 | 3片 |
10 | 1 | \ | PVC管3 | 1套（3根） |
11 | 1 |
RM108001
| 1个 | |
12 | 1 | \ | PVC管4 | 1根 |
13 | 1 |
RM108002
| 1个 | |
14 | 1 | \ | PU管1 | 1根 |
- Product Description：
This accessory is one of the fittings for the pipeline of the 24 hours multi-patient internal piping system. The piping system can be used in Ulrich or other similar multi-channel high-pressure syringe equipments. This accessory is installed on the pressure sensor base plunger to prevent gas leakage and liquid leakage when the medical liquid flows through the pressure sensor due to pressure changes.
- Specification

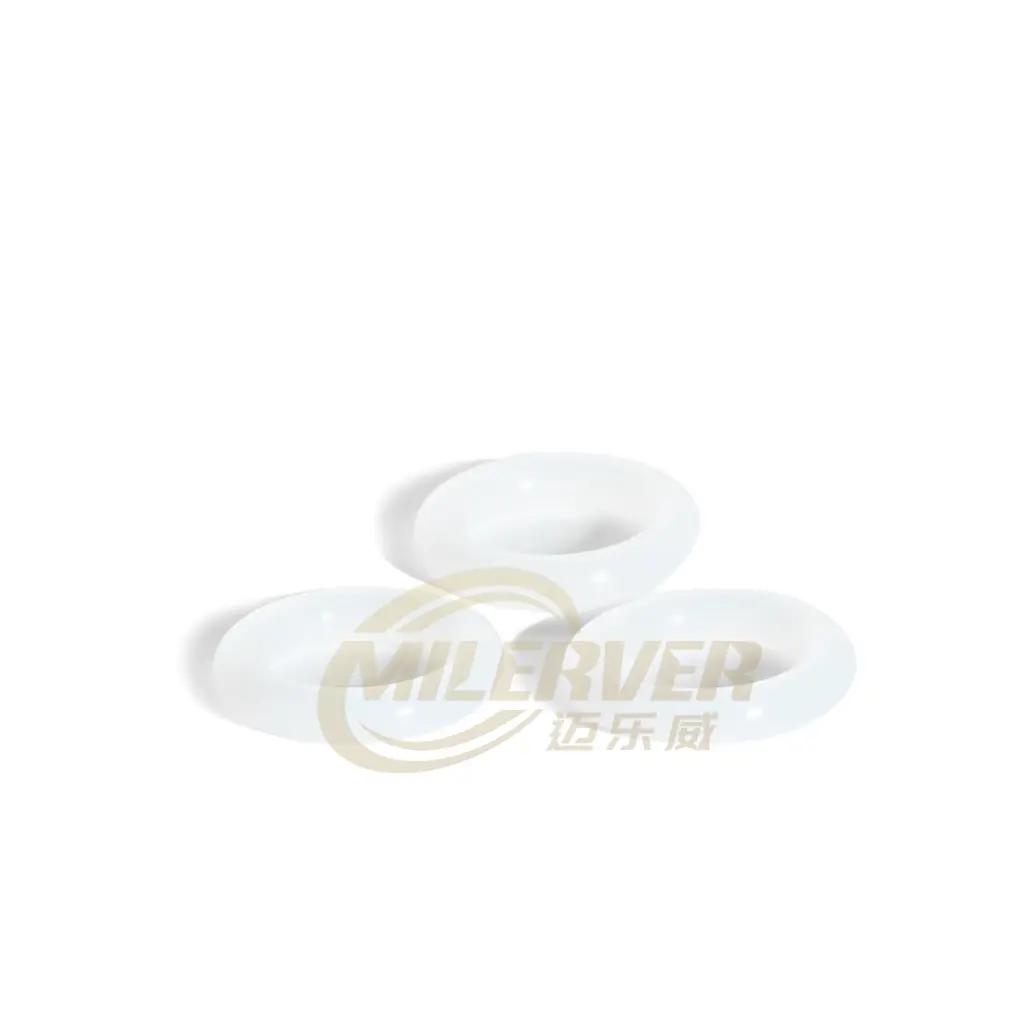

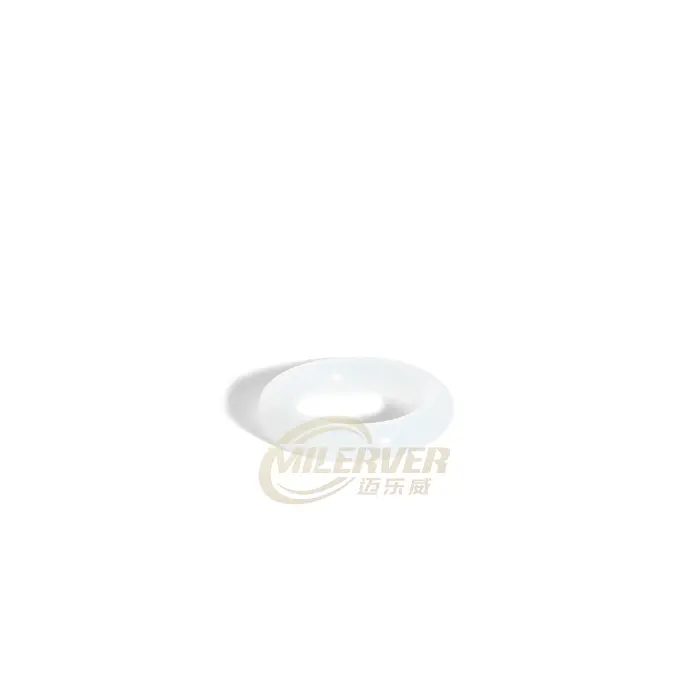

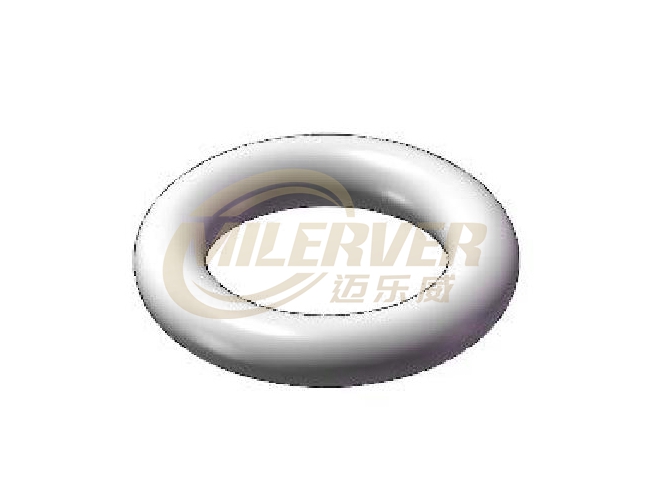

Product Universal Name： | Waterproof And Leak-proof Air-tight Silicone Ring |
Model Number： | RM115003 |
Brand Name： | Milerver |
Country of Origin： | CN |
Key Words： | Disposable Medical 24 Hours Multi-patient Inner Pump Pipe Multi-channel Piping System Waterproof And Leak-proof Air-tight Silicone Ring High-pressure Syringes Ulrich |
Types： | Pressure Sensors and Accessories |
Application： | 24-Hours Multi-User Inner Pump Tubing |
Material： | Silicone |
Weight： | 0.381 g |
Size： | About 12*12 mm (L*W) |
Disinfecting Type： | EO Sterilization / Unpasteurized |
Shelf Life： | Three years |
Certificate of Quality System： | ISO
13485, GMP, ISO 9001, ISO 14001, ISO 45001 |
Quality Certification： | CE & ISO |
Instrument Classification： | Class II |
Product Standard： | ISO 10993, GB/T 16886 |
Material Standard： | YYT 0031 |
Material Compatibility： | The products meet the requirements of "GB/T 16886.10-2017" biological evaluation standard for medical devices |
Biocompatibility： | EN
ISO 10993 & GB/T 16886 |
Manufacturing： | ISO 13485 Certification & CE Certification & Class 100,000 Clean Workshop |
MOQ： | 500 pcs |
Samples： | Less than 5 pcs are free, but not including shipping |
Packing： | Plastic seal pocket with carton |
OEM & ODM： | Yes |
- Application Scenarios 1
First Generation Ulrich Inner Pump Pipeing System BOM
Serial No. | Tier | Product Model | Product Generic Name | Dosage |
01 | 1 | RM109002 | Disposable Medical Plastic Rotating Female Luer Adaptor Locking Connector with Vented | 1 pcs |
02 | 1 | RM109001 | Disposable Medical Use Lock Cap | 1 pcs |
03 | 1 | RM108003 | Disposable Medical Lock Cap Connector | 1 pcs |
04 | 1 | \ | PVC Tube 1 | 1 pcs |
05 | 1 |
SF110001
| First Generation Ulrich Inner Pipe Pipeline System Medicine Liquid Filter | 1 set |
\ | 2 |
RM111001
| Medicine Liquid Filter Upper Cover | 1 pcs |
\ | 2 |
RM111002
| Medicine Liquid Filter Lower Cover | 1 pcs |
\ | 2 |
RM111003
| Medicine Liquid Filter Membrane | 1 pcs |
06 | 1 | \ | PVC Tube 2 | 1 pcs |
07 | 1 |
SF114001
| First Generation Ulrich Inner Pump Pipeing System Pressure Sensor | 1 pcs |
\ | 2 | RM115001 | First Generation Ulrich Inner Pump Pipeing System Pressure Sensor Base | 1 pcs |
\ | 2 |
RM115002
| First Generation Ulrich Inner Pump Pipeing System Pressure Sensor Base Plunger | 2 pcs |
\ | 2 | RM115003 | Waterproof And Leak-proof Air-tight Silicone Ring | 2 pcs |
08 | 1 | RM113006 | Medicine Bottle Rubber Plug Puncture Outfit Protective Cap | 3 pcs |
09 | 1 |
SF112001
| Medicine Bottle Rubber Plug Puncture Outfit for CT | 3 sets |
\ | 2 | RM113101 | Medicine Bottle Rubber Plug Puncture Outfit Main Body for CT | 3 pcs |
\ | 2 | RM113001 | Medicine Bottle Rubber Plug Puncture Outfit Base | 3 pcs |
\ | 2 | RM113002 | Medicine Bottle Rubber Plug Puncture Outfit Silicone Cover | 3 pcs |
\ | 2 | RM113003 | Medicine Bottle Rubber Plug Puncture Outfit Plug | 3 pcs |
\ | 2 | RM113004 | Medicine Bottle Rubber Plug Puncture Outfit Silicone Gasket | 3 pcs |
\ | 2 | RM113005 | Medicine Bottle Rubber Plug Puncture Outfit Waterproof Breathable Membrane | 3 pcs |
10 | 1 | \ | PVC Tube 3 | 1 set（3 pcs） |
11 | 1 |
RM108001
| Medical Use Transparent Cross Shape Connector with 4 Ports | 1 pcs |
12 | 1 | \ | PVC Tube 4 | 1 pcs |
13 | 1 |
RM108002
| Medical Use Plastic Tube Connector | 1 pcs |
14 | 1 | \ | PU Tube 1 | 1 pcs |
